Introduction
A good convenience store layout does two jobs at once. It helps someone grab milk and gas receipts in under 90 seconds, and it nudges that same person toward a coffee, a bag of chips, or a seasonal display they hadn't planned on buying.
Most stores fail at balancing both. Common culprits include:
- Cramped floor plans that create bottlenecks near coolers or checkout
- Poor sightlines that hide foodservice or high-margin categories
- Restocking routes that block customers during peak hours
- Branding that feels inconsistent from the parking lot to the counter
- Fixtures too rigid to adapt when product mixes shift
This guide walks through layout types, merchandising zones, fixtures, lighting, accessibility, security, and planning approaches for single stores and multi-location rollouts. Whether you're remodeling one location or standardizing fixtures across a franchise network, the same design fundamentals apply.
Key Takeaways
- Match layout type to footprint, customer mission, and traffic pattern instead of copying a competitor's floor plan
- Prioritize sightlines, logical category adjacencies, and checkout merchandising to capture impulse revenue
- Choose reconfigurable fixtures so seasonal resets and category shifts don't require rebuilding the store
- Build accessibility, security, and restocking access into the design brief from day one, not as an afterthought
Choosing the Right Convenience Store Layout
The "best" layout depends on your store's square footage, trip type, fuel-pump proximity, foodservice complexity, and staffing levels.
A 1,200-square-foot fuel-adjacent store has different needs than a 3,500-square-foot urban location with a full kitchen.
Four Common Layout Types
| Layout | Best For | Trade-Off |
|---|---|---|
| Grid | Dense product capacity, quick-trip shopping | Can feel repetitive; limits cross-aisle visibility |
| Loop/Racetrack | Exposing shoppers to more categories via a guided path | May slow down customers who just want one item |
| Free-flow | Premium foodservice, branded environments, discovery | Needs strong signage or shoppers get lost |
| Herringbone/Hybrid | Narrow or irregular footprints | Limited side-aisle visibility can increase shrink risk |
How each type plays out on the floor:
- Grid — Parallel aisles maximize shelf density, so many c-stores default to it. Visual merchandising research finds grids efficient for quick trips, but they feel mundane without a power wall or endcap breaking the rhythm.
- Loop/Racetrack — Guides shoppers past more categories on the way to checkout, which helps build basket size.
- Free-flow — Fits foodservice-led stores that want an open, café-like feel and discovery-driven browsing.
- Herringbone — Angles shelving toward a focal wall to adapt grid logic to narrow or irregular footprints.
Because every format has trade-offs, most stores land on a hybrid: grid for packaged goods, free-flow around the coffee bar, and a short herringbone run on a tight side wall.
Layout Decision Checklist
Before finalizing a floor plan, confirm:
- Sightline — Entry view reaches the back wall or foodservice area
- Coolers — Place in a high-traffic zone, not a buried corner
- Checkout — Keep clear queue space that doesn't block the exit
- Aisles — Allow comfortable two-way traffic, including carts
- Restocking — Route carts away from peak customer paths
- Egress — Keep emergency exits unobstructed at all times
- Flexibility — Choose fixtures you can reconfigure for future sets
Convenience Store Design Ideas That Improve Merchandising and Customer Experience
Once the layout skeleton is set, merchandising zones determine whether customers notice and buy what you're selling.
Entry, Power Wall, and Foodservice Placement
Keep the entry decompression zone open. Don't crowd it with baskets, displays, or signage that blocks the first sightline. That sightline should land on something worth seeing: a power wall, a coffee bar, or a foodservice case.
Power walls and endcaps deserve modular fixtures so resets take minutes, not hours. Seasonal candy in October shouldn't require tearing down permanent shelving.
Foodservice zones benefit from visibility and clear circulation. NACS design coverage recommends direct sightlines to an open kitchen to signal freshness, plus separated paths for ordering, seating, and pickup so lines don't tangle.

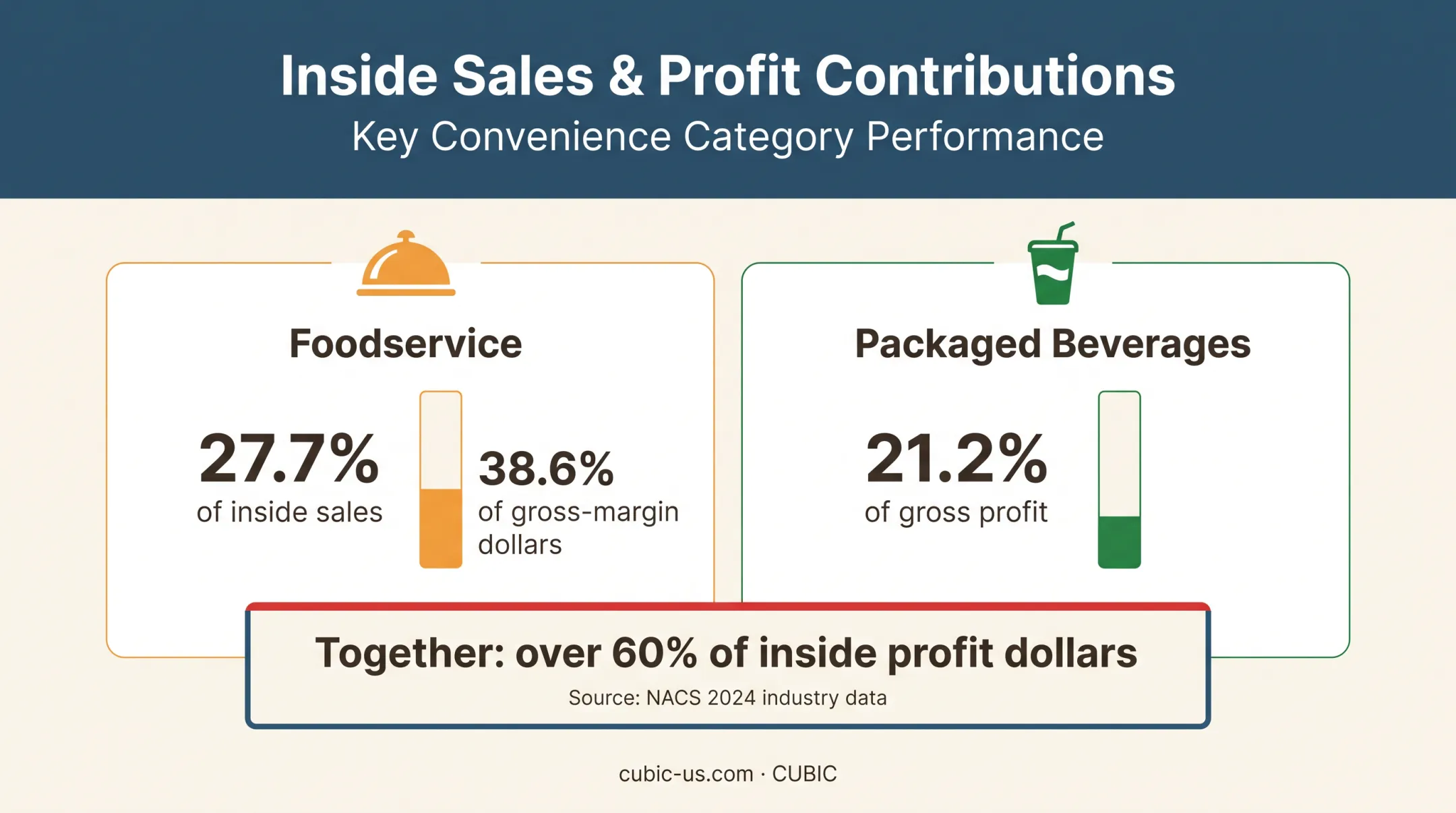

Foodservice generated 27.7% of inside sales and 38.6% of gross-margin dollars in 2024, while packaged beverages added another 21.2% of gross profit, according to NACS's 2024 industry data. Together, those two categories accounted for over 60% of inside profit dollars. That's not a category to tuck in the back.
Beverage Coolers and Checkout Merchandising
Coolers should be visible from the entrance and easy to restock without blocking shoppers. Group by category — energy drinks, soft drinks, water — so repeat customers find their usual pick without scanning every door.
Checkout is prime impulse territory, but there's a fine line between merchandising and clutter:
- Snacks, mints, and batteries work well in small checkout-adjacent bins
- Avoid stacking so much product that the queue feels congested
- Keep price signage visible from a few feet back, not just at the register
Adjacencies, Flexible Fixtures, and Wayfinding
Pair items shoppers already buy together: chips near beverages, creamer near coffee. It sounds obvious, but a surprising number of stores separate these by an aisle or two out of habit rather than data.

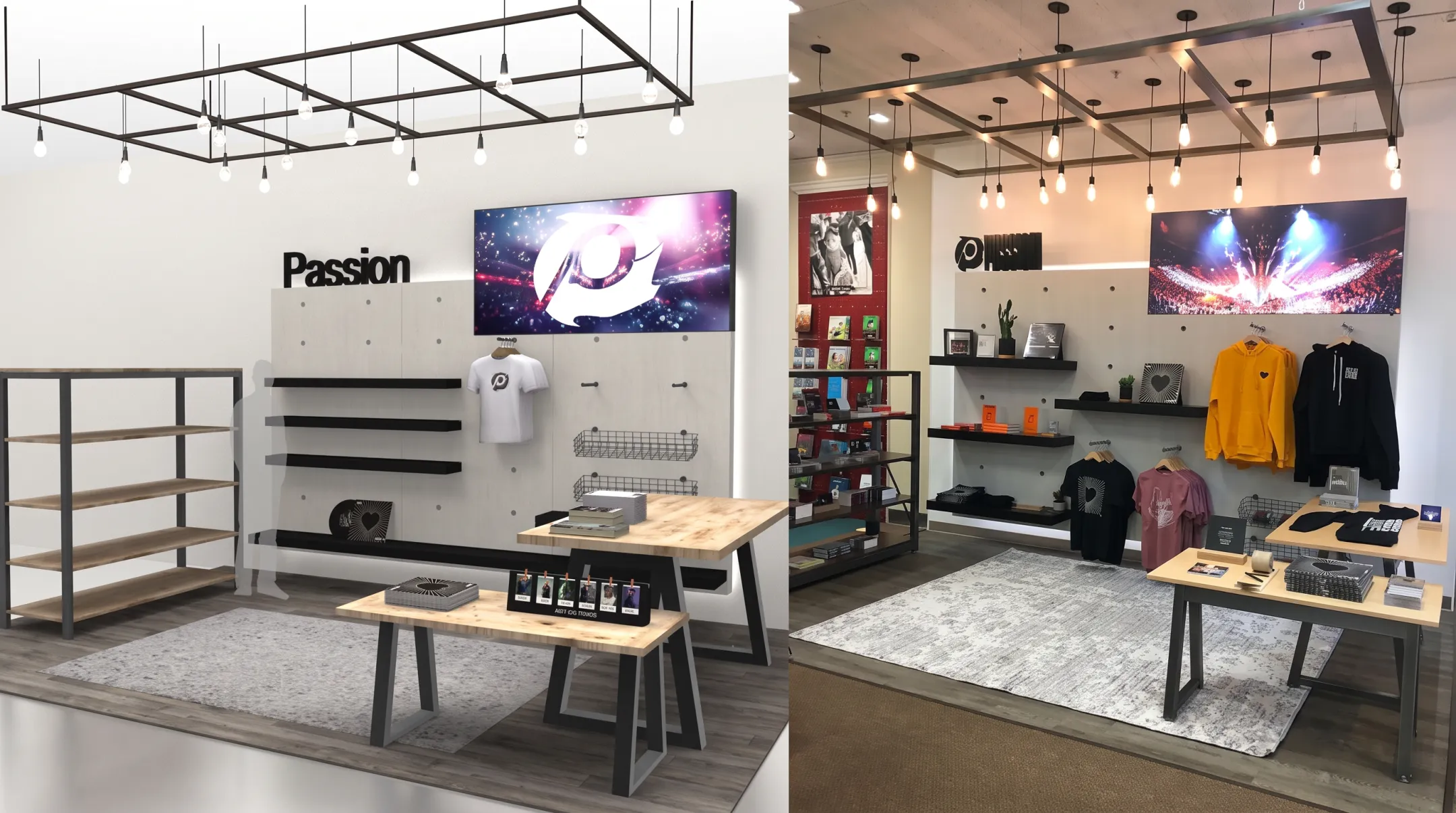

Modular fixture systems make these adjustments painless. CUBIC's Fortify system, for example, uses a vertical track with slotted posts and adjustable brackets, letting staff move shelves or crossbars to fit new package sizes without swapping hardware.
Systems like TraxV work similarly: shelving, face-outs, and hang-rails can shift positions for seasonal promotions, then shift back.
Signage hierarchy matters more than decoration. Category signs, prices, and foodservice menus should be readable from a walking pace, not just up close. Restrooms and exits need their own clear, consistent signage — not an afterthought bolted on later.
Finally, don't forget the people restocking shelves. Fixtures that tolerate frequent cleaning and allow restocking from a side aisle (not the main customer path) reduce friction for both staff and shoppers.
Essential Zones, Fixtures, and Operational Requirements
Before selecting a single fixture, map your zones. Fixture decisions should follow zone decisions, not the other way around.
Core zones to plan:
- Entry and impulse
- Quick-trip merchandise
- Coolers and ambient grocery
- Foodservice
- Checkout
- Storage and staff areas
Sightlines, Safety, and Accessibility
Fixture height affects more than product visibility: it affects supervision. Lower fixtures near the front let staff scan the store from the register. Taller units toward the back can hide blind spots that invite shrink (theft and loss).
Accessibility isn't optional. Under ADA design standards, accessible-route aisles need at least 36 inches of clear width, and checkout counters can't exceed 38 inches at the accessible register. Required accessible checkout lanes scale with total aisle count; stores under 5,000 square feet typically need just one.
Verify current requirements with a qualified accessibility professional before finalizing plans. Standards get updated, and local codes can add rules.
Other operational must-haves:
- Slip-resistant flooring near coolers and foodservice prep
- Adequate lighting on every aisle, not just the power wall
- Clear circulation paths that don't narrow below code minimums
- Service access points for refrigeration and lighting maintenance
- Fixtures rated for real load capacity, delivery handling, and expected service life
Loss Prevention Without Feeling Like a Fortress
Security shouldn't mean cages and blind corners. NACS recommends tracking store-level metrics—shrink, incidents, transaction counts—rather than applying a blanket camera plan to every location. A high customer-count-to-transaction ratio often signals higher shrink risk and is a practical cue for where to add cameras or staff visibility.
Design-wise, that means:
- Open sightlines from the register to high-risk categories
- Camera placement that covers blind aisles, not just the entrance
- Premium products (tobacco, high-value items) positioned near staff view
Exterior, Branding, Technology, and Current Convenience Store Trends
The store experience starts before someone walks in. Storefront visibility, lighting, and parking-to-door flow all shape first impressions and repeat visits.
Exterior and Brand Environment
Well-lit signage, clean glass entrances, and a facade that reads as maintained (not just built) all signal safety and trust before a customer steps inside. Materials matter here: durable, easy-clean surfaces on the exterior reduce the "worn down" look that discourages walk-ins.
That first impression should carry indoors. Brand identity should support wayfinding rather than compete with it. Feature walls, custom fixtures, and consistent color use help a store feel distinct without burying essential signage under decoration.
Technology and Checkout Evolution
Self-checkout is no longer experimental in convenience retail. As of early 2024, 37% of convenience-store and fuel retailers were piloting or scaling self-checkout systems, according to Convenience Store News.
Checkout zones now need room for both staffed and self-service lanes, plus space for exception handling when self-checkout hits a snag.
Other technology worth planning around:
- Digital menu boards for foodservice pricing flexibility
- Electronic shelf labels for faster price updates
- QR-enabled promotions tied to seasonal displays
Sustainability and Durable Trends

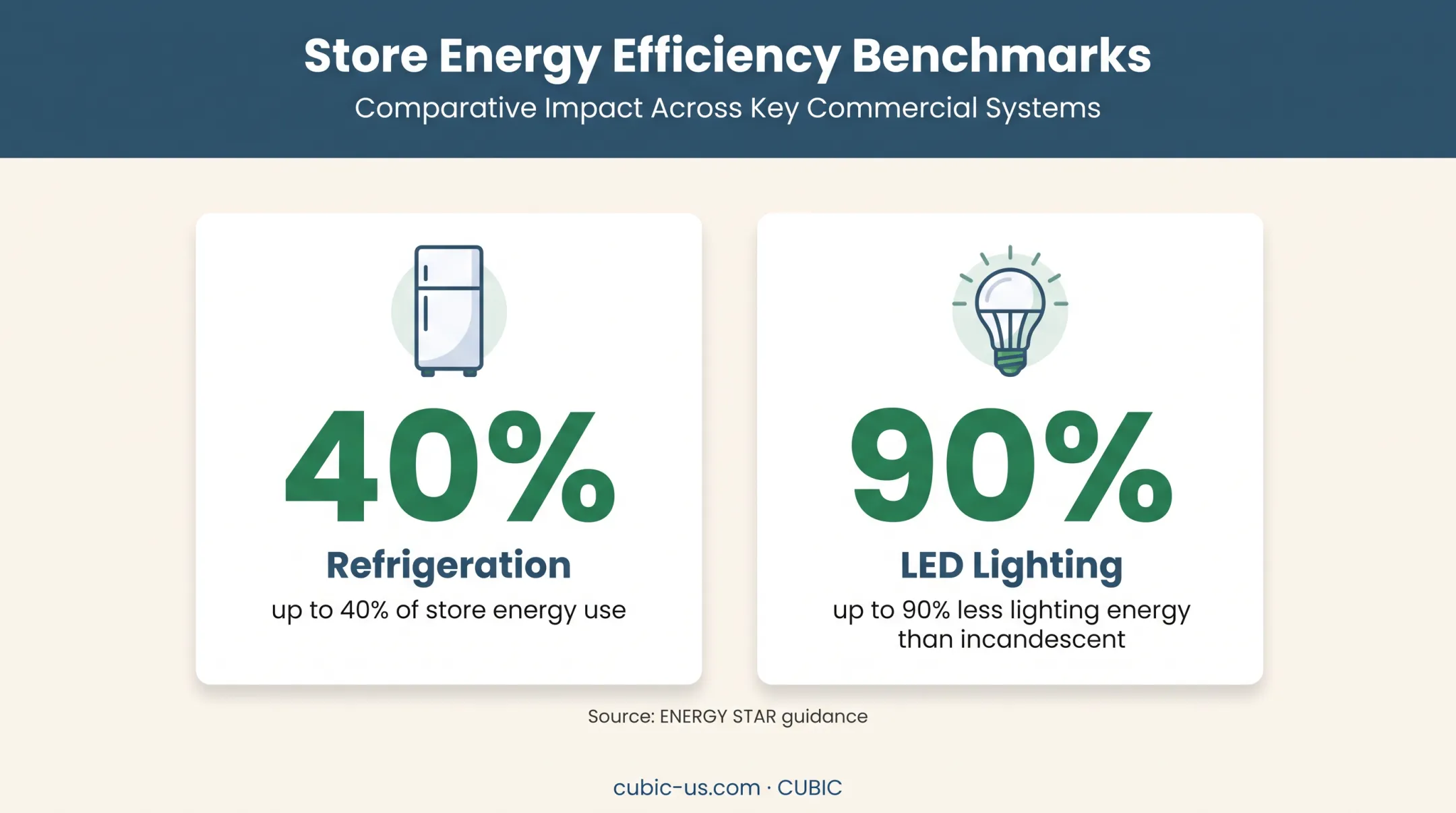

Refrigeration can account for up to 40% of a convenience store's energy use. LED lighting can cut lighting energy by as much as 90% compared to incandescent, per ENERGY STAR guidance.
Durable fixtures that last a full remodel cycle also reduce long-term waste versus cheaper units replaced every few years.
Not every trend deserves a permanent redesign. Fresh foodservice and flexible merchandising are durable shifts backed by real sales data. Novelty décor tied to a single season, on the other hand, shouldn't dictate your core fixture investment.
Planning a Flexible Convenience Store Design for Long-Term Performance
A layout that works on paper doesn't always work in practice. Start with a design brief documenting footprint, customer segments, daypart traffic patterns, foodservice offer, and brand standards. Then use actual sales and observation data, not guesswork, to spot bottlenecks and underperforming zones.
Prototype Before You Scale
Develop multiple layout concepts, not one fixed plan. Compare each against customer flow, restocking efficiency, and security. A pilot location or temporary fixture trial lets you measure real outcomes:
- Conversion rate changes
- Basket composition shifts
- Queue time during peak hours
- Shrink and labor effort
Newer prototype programs in the industry follow the same path: test first, then standardize what works before a full rollout.
Why Modular Fixtures Matter for Flexibility
Modular and custom fixtures let operators change product presentation, seasonal displays, and category layouts without rebuilding the store. This is where a manufacturing partner earns its keep. CUBIC works with retailers on this challenge. Modular fixtures like Flex-D and TraxV adjust for shelving material, hardware finish, and brand-specific accessories, so a category reset doesn't mean tearing out permanent shelving.
For multi-location operators, the priority shifts to consistency:
- Standardized fixture packages that repeat across locations
- Documented planograms so each store executes the same category logic
- Coordinated logistics and installation timing across a rollout schedule
CUBIC's store rollout program management handles that coordination: design, manufacturing oversight, and logistics for brands rolling out fixtures across dozens or hundreds of locations, without every step managed in-house.
Budgeting for Setup or Remodel
Costs vary too widely to quote a single number responsibly. Factors that move the total include:
- Square footage and construction scope
- Refrigeration and foodservice build-out
- Custom fixture fabrication and signage
- Permitting
Build a project-specific budget with a contractor and fixture partner rather than relying on industry averages that may not reflect your market or footprint.
Pre-Launch Checklist
Before opening day, confirm:
- Customer-flow testing under simulated peak traffic
- Fixture safety and load-capacity checks
- Accessibility review against current ADA guidance
- Signage accuracy across pricing, promotions, and wayfinding
- Equipment commissioning for refrigeration and foodservice gear
- Staff training on restocking routes and checkout procedures
- A plan to review performance data 30-60 days post-launch
Frequently Asked Questions
How much does it cost to set up a convenience store?
Cost depends on location, square footage, construction scope, refrigeration, foodservice equipment, fixtures, and permitting. Work with contractors and fixture suppliers to build a project-specific budget rather than relying on general estimates.
What is the most efficient store layout?
Efficiency depends on your footprint and shopping mission. Grid layouts suit dense, quick-trip shopping; loop layouts guide discovery; free-flow supports foodservice; hybrids combine approaches for irregular spaces.
What are the four main types of store layouts?
Grid (parallel aisles for density), loop/racetrack (guided circulation path), free-flow (open, discovery-oriented), and herringbone (angled shelving for narrow spaces). Most convenience stores blend two or more.
What are the key features of a convenience store?
Core features include accessible entry, clear aisles, a visible checkout, well-organized coolers, quick-trip merchandise, grab-and-go or foodservice options, clear signage, and unobstructed restocking access.
What are the new trends in convenience stores?
Leading trends include fresh foodservice expansion, self-checkout, flexible merchandising fixtures, energy-efficient refrigeration and lighting, and community-focused branding.
What is the most profitable item in a convenience store?
Profitability varies by margin, demand, and local market. Foodservice and packaged beverages together account for over 60% of inside gross-margin dollars industry-wide, though your mix will vary by store.
