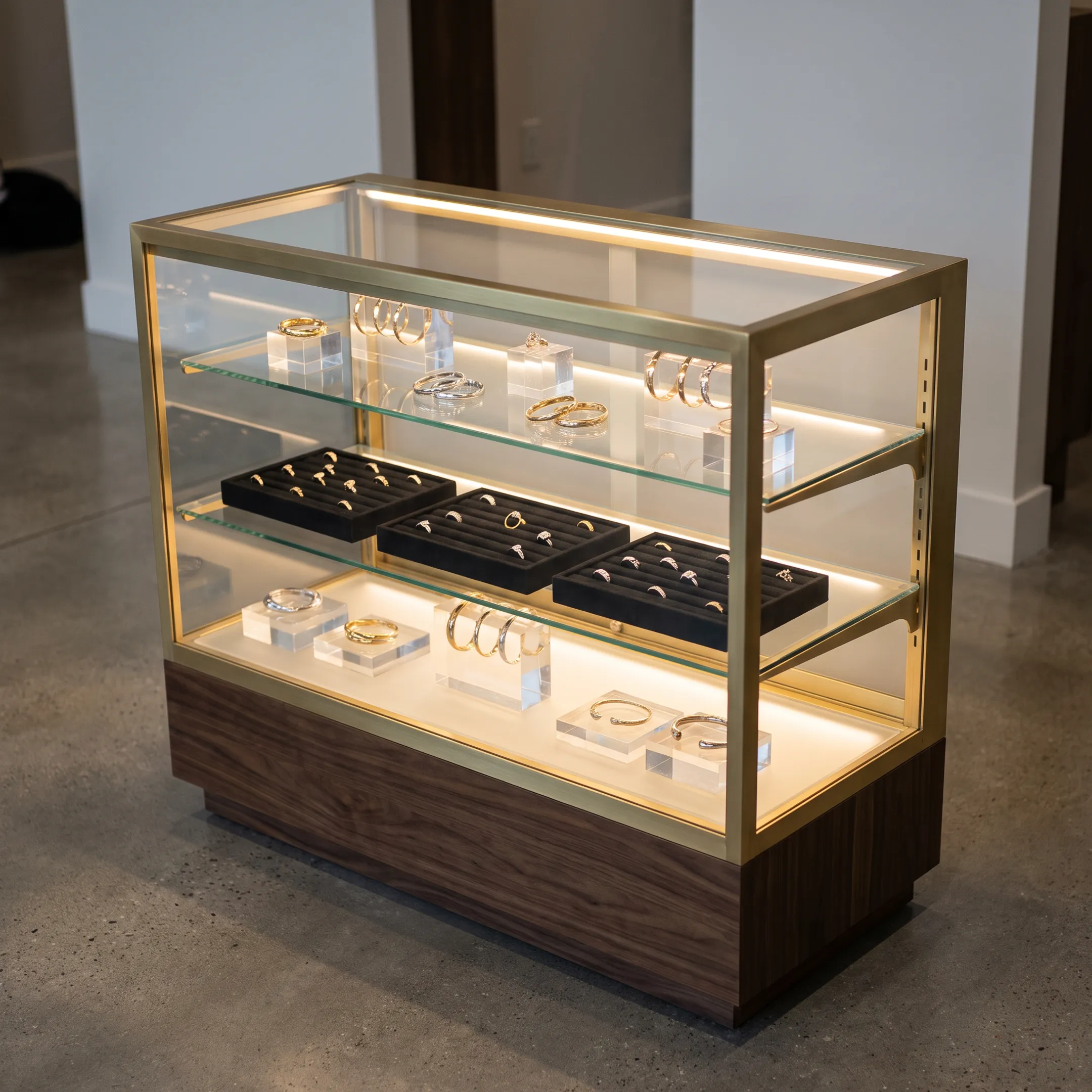

Lighted Glass Display Cases

Warm 3000K LEDs integrated directly into glass shelf assemblies provide optimal product illumination. Built-in low-voltage LED configurations accentuate jewelry, cosmetics, and specialty merchandise without cumbersome external fixtures or excessive heat accumulation.

All display systems feature tempered safety glass construction. Shelving is available in 6mm and 8mm thickness options, with documented surface finish selections including clear and frosted glass to match interior design concepts.

Illuminated EH glass shelves operate on a power supply with 100–240V input at 50–60Hz and 24V DC nominal output up to 5000mA. One power supply can energize up to three profiles totaling 3000mm in profile length.

The 6mm EH glass shelves support a maximum load capacity of 20 lbs per shelf. Heavy-duty mounting options include D30 hang-rail brackets rated up to 40 lbs per bracket and V4 brackets supporting 30 to 40 lbs per bracket.

Yes, CUBIC provides made-to-order modular configurations with shelf lengths such as 620mm, 1245mm, and 1870mm, multiple depths, custom metal hardware finishes, and display accessories such as jewelry busts, arms, and spinners.

Installation, assembly, and disassembly must follow CUBIC instructions and applicable accident-prevention regulations. Systems should be anchored into structurally sound walls, ceilings, or floors by qualified personnel to ensure structural safety.
